Wheel Bearing and Wheel Hub - F-450, F-550: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

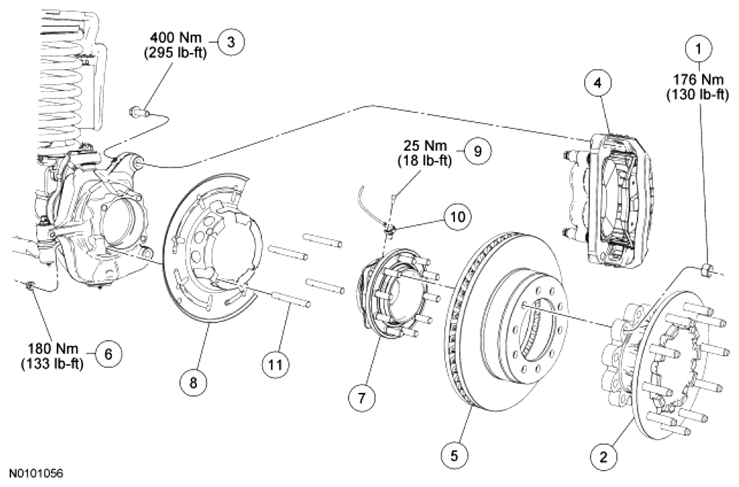

RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520506 | Wheel extension nut (part of 1A104) (8 required) |
| 2 | 1A104 | Wheel extension |
| 3 | W709789 | Brake caliper anchor plate bolt (2 required) |
| 4 | 2B121 LH/2B210 RH | Brake caliper assembly |
| 5 | 1125 | Brake disc |
| 6 | 1107 | Wheel bearing and wheel hub nut (part of 2B663) (4 required) |
| 7 | 2B663 | Wheel bearing and wheel hub |
| 8 | 2K005 | Brake disc shield |
| 9 | - | Wheel speed sensor bolt |
| 10 | 2C204 | Wheel speed sensor |
| 11 | 1120 | Wheel bearing and wheel hub stud (part of 2B663) |
