Wheel Bearing and Wheel Hub - F-250, F-350: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

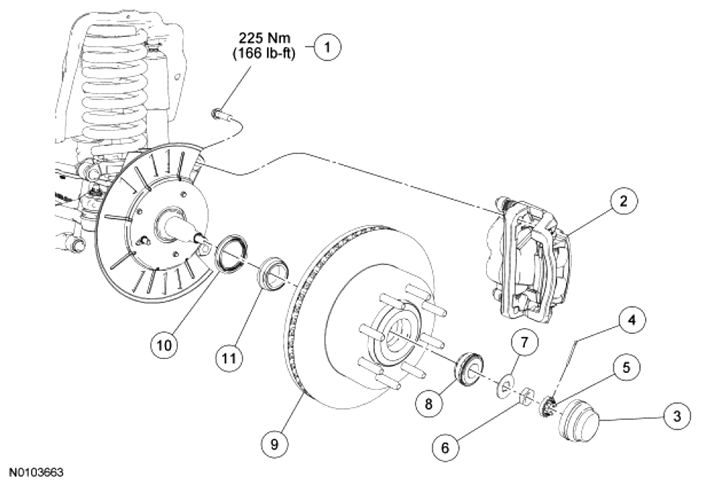

NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W710517 | Brake caliper anchor plate bolt (2 required) |
| 2 | 2B121 LH/2B210 RH | Brake caliper |
| 3 | 1131 | Grease cap |
| 4 | W525287 | Cotter pin |
| 5 | 390622 | Wheel spindle nut retainer |
| 6 | 374504 | Wheel spindle nut |
| 7 | 1195 | Washer |
| 8 | 1216 | Outer wheel bearing |
| 9 | 1104 | Brake disc and hub assembly |
| 10 | 1190 | Grease seal |
| 11 | 4221 | Inner wheel bearing |
