Track Bar Bushing: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the track bar. Refer to TRACK BAR .
    NOTE: To avoid damage to the components, do not use heat to aid track bar bushing removal.

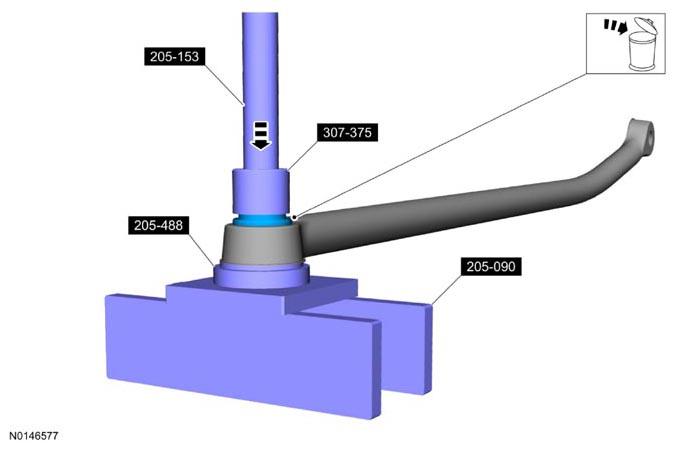

  2. Discard the specified component. Follow local disposal regulations.

    Special Tool(s): Plate, Bearing/Oil Seal 205-090 (T75L-1165-B). Handle 205-153 (T80T-4000-W). Installer, Drive Pinion Bearing 205-488 (205-488). Installer, Needle Bearing 307-375 (307-375).

    General Equipment: Hydraulic Press.

    G07966977

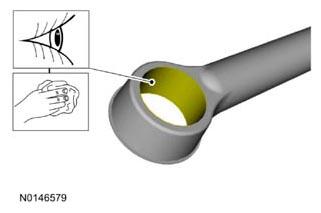

  3. NOTE: Use clean shop rag.

    Visual check.

    Clean the specified component with the specified material.

    G07966978
