Track Bar Bushing: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

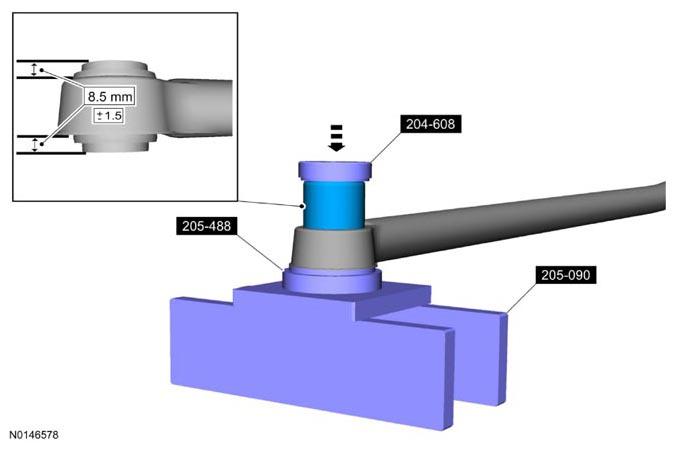

  1. NOTE: Bushing should be centered in track bar.

    Special Tool(s): Remover, Bushing 204-608 (204-608). Plate, Bearing/Oil Seal 205-090 (T75L-1165-B). Installer, Drive Pinion Bearing 205-488 (205-488).

    General Equipment: Hydraulic Press.

    G07966979
  2. Install the track bar. Refer to TRACK BAR .
