Radius Arm Bushing - F-450, F-550: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the new bushing into the axle assembly.
  2. Using the Radius Arm Bushing Remover/Installer, install the radius arm bushing.

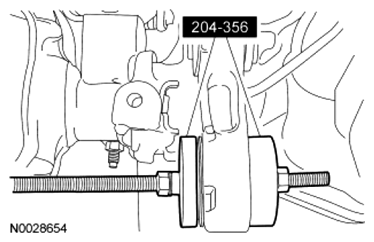

    Fig 1: Installing Radius Arm Bushing
    G06776328Courtesy of FORD MOTOR CO.
  3. Install the radius arm. For additional information, refer to RADIUS ARM - F-450, F-550 .
