Ball Joint: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
| Installer/Remover, Ball Joint 204-355 |
|
| Installer/Remover, Ball Joint 204-358 |
|
| Installer/Remover, C-Frame and Screw 205-086 (T74P-4635-C) |

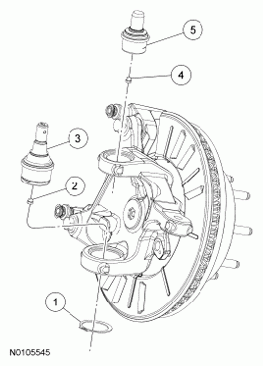

| Item | Part Number | Description |
|---|---|---|
| 1 | 97541 | Snap ring |
| 2 | - | Grease fitting (part of 3050) |
| 3 | 3050 | Lower ball joint |
| 4 | - | Grease plug (part of 3049) |
| 5 | 3049 | Upper ball joint |
