Ball Joint - Track Bar: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
| Installer/Remover, C-Frame and Screw 205-086 (T74P-4635-C) |
|
| Remover/Installer, Ball Joint 204-355 |

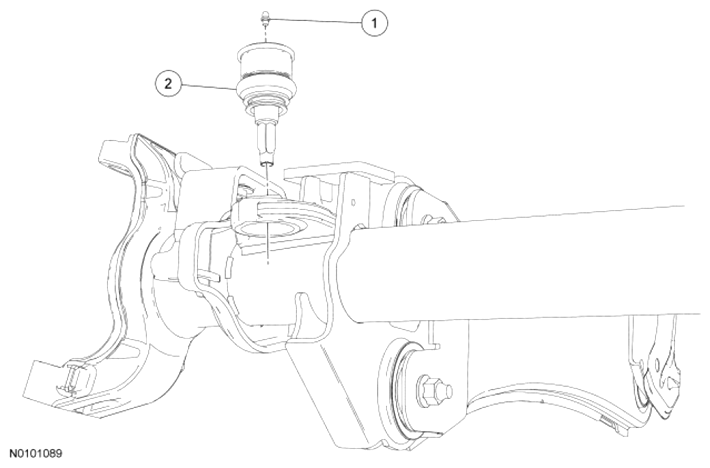

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ball joint grease fitting |
| 2 | - | Track bar ball joint |

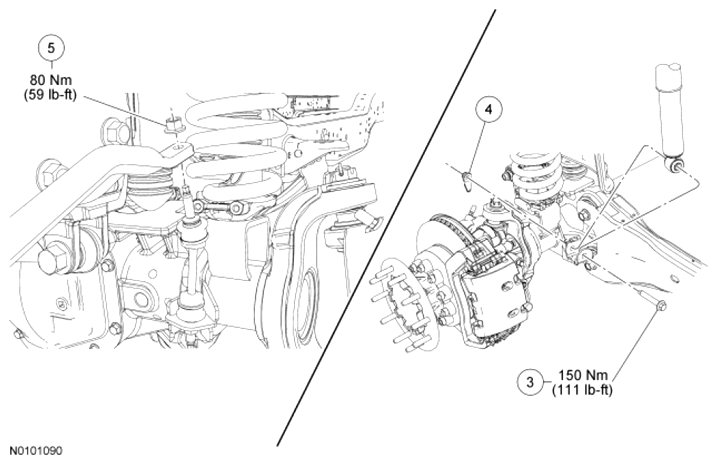

Fig 2: Shock Absorber Lower Bolt, Shock Absorber Lower Flagnut And Stabilizer Bar Link Nut With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 3 | W500765 | Shock absorber lower bolt |
| 4 | W711430 | Shock absorber lower flagnut |
| 5 | N807144 | Stabilizer bar link nut |
