Ball Joint - Track Bar: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the ball joint into the bracket.
  2. NOTE: The grease fitting must be removed from the ball joint prior to installation or damage to the grease fitting can occur.
    NOTE: The ball joint is installed with the dust boot attached to the ball joint. Do not damage the ball joint boot during installation.

    Using the C-Frame and Screw Installer/Remover and the Ball Joint Remover/Installer, install the ball joint.

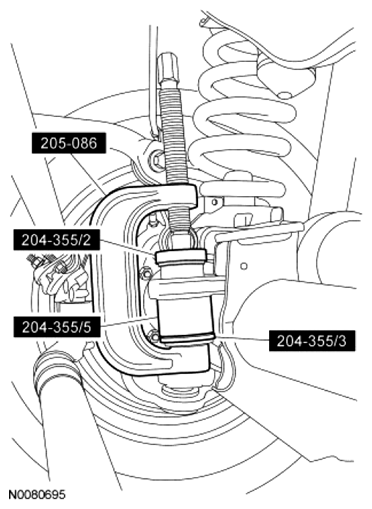

    Fig 1: Installing Ball Joint
    G06776339Courtesy of FORD MOTOR CO.
  3. If removed, install the ball joint grease fitting.
  4. Using the jackstand, raise the front axle until the weight of the vehicle is supported by the jackstand.
  5. Install the new shock absorber lower bolt and flagnut.
    • Tighten the bolt to 150 Nm (111 lb-ft).
  6. Install a new stabilizer bar link upper nut.
    • Tighten to 80 Nm (59 lb-ft).
  7. Install the track bar. For additional information, refer to TRACK BAR .
