Axle - F-250, F-350: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

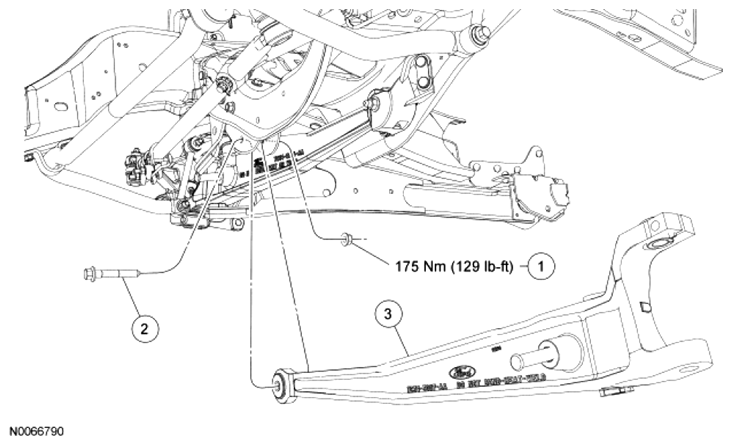

Fig 1: Axle Related Replacement Components With Torque Specifications -- F-250, F-350

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520516	Axle pivot nut
2	N803990	Axle pivot bolt
3	3007 LH/3006 RH	Axle
