Toe Adjustment - F-250 and F-350 Rear Wheel Drive (RWD)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Using alignment equipment and the manufacturer's instructions, measure the toe settings.
- Refer to Alignment Specifications in the Specifications portion for optimal alignment settings.
- If the toe settings are not within specification, go to the next step.
- Start the engine and center the steering wheel.
- Turn the engine off and, using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.

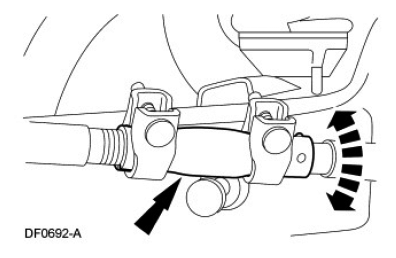

- Loosen the tie-rod adjuster sleeve nuts.
- Rotate the tie-rod adjusting sleeves to obtain the correct toe setting.
- Position both adjusting sleeve clamp openings downward within 45 degrees of vertical. Tighten the nuts to 55 Nm (41 lb-ft).
- Verify the toe settings and adjust as necessary.
