F-250 and F-350, Rear Wheel Drive (RWD) and F-450 and F-550 without Low Deflection Package

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

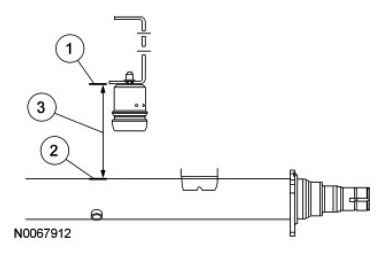

Fig 1: Identifying Rear Ride Height Measurement - F-250 And F-350, Rear Wheel Drive (RWD) And F-450 And F-550 Without Low Deflection Package
G06762684Courtesy of FORD MOTOR CO.
Item Description
1 Bottom of the jounce bumper at the frame (measurement point 1)
2 Top of axle tube (measurement point 2)
3 Ride height = distance between measurement point 1 and measurement point 2
