F-250 and F-350, Four-Wheel Drive (4WD), F-450 and F-550
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

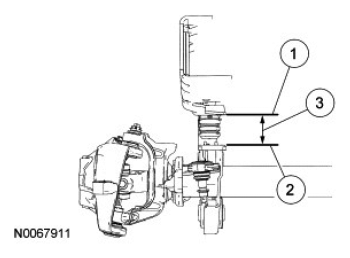

Fig 1: Identifying Front Ride Height Measurement - F-250 And F-350, Four-Wheel Drive (4WD), F-450 And F-550
| Item | Description |
|---|---|
| 1 | Bottom of the jounce bumper bracket at the frame (measurement point 1) |
| 2 | Top of shock tower (measurement point 2) |
| 3 | Ride height = distance between measurement point 1 and measurement point 2 |
-
NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure.
To obtain vehicle ride height, measure the distance between points 1 and 2. For additional information, refer to SPECIFICATIONS .
