Electric Exhaust Gas Recirculation (EEGR) Valve

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

Depending on the application, the EEGR valve is either a water cooled or an air cooled motor/valve assembly. The motor is commanded to move in 52 discrete steps as it acts directly on the EEGR valve. The position of the valve determines the rate of EGR. The built-in spring works to close the valve against the motor opening force.

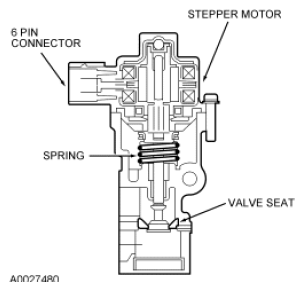

Fig 1: Identifying Electric Exhaust Gas Recirculation (EEGR) Valve
G08291318Courtesy of FORD MOTOR CO.
