Three Way Catalytic (TWC) Converter Conversion Efficiency
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

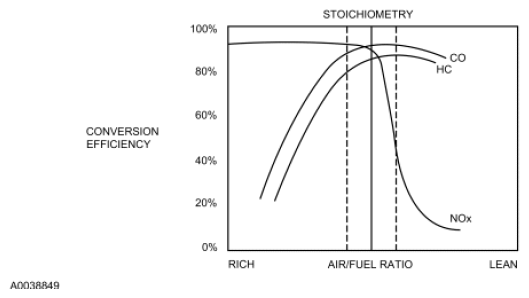

A TWC convertor requires a stoichiometric air fuel ratio of 14.7 pounds of air to 1 pound of gasoline, or 14.7:1, for high conversion efficiency. In order to achieve these high efficiencies, the air to fuel ratio must be tightly controlled with a narrow window of stoichiometry. Deviations outside of this window greatly decrease the conversion efficiency. For example a rich mixture decreases the HC and CO conversion efficiency while a lean mixture decreases the NO x conversion efficiency.
For vehicles using E85 the required air to fuel ratio is 9.8:1. Other gasoline/ethanol mixtures require a variable air to fuel ratio between 14.7:1 to 9.8:1 dependent on the percentage of ethanol content.
