Turbocharger Inlet Pipe - RH, 6.7L Diesel: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new gasket on the RH exhaust manifold flange.
  2. Install a new RH turbocharger inlet pipe clamp on the RH turbocharger inlet pipe.
    • Disengage the clamp T-bolt and loosely install the clamp on the RH turbocharger inlet pipe.
  3. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.
    NOTE: Do not tighten the RH turbocharger inlet pipe clamp at this time.

    Install the RH turbocharger inlet pipe and loosely position the RH turbocharger inlet pipe clamp over both sealing flanges.

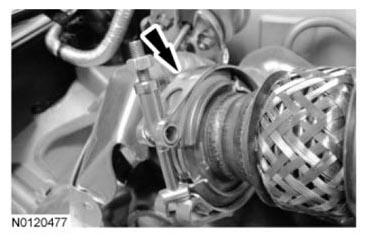

    Fig 1: Locating RH Turbocharger Inlet Pipe Clamp
    G07484267Courtesy of FORD MOTOR CO.
  4. NOTE: Do not tighten the RH turbocharger inlet pipe nuts at this time.

    Install 3 new RH turbocharger inlet pipe nuts.

    • Hand tighten the 3 new nuts.
  5. NOTE: Do not tighten the Exhaust Pressure (EP) sensor flare nut at this time.

    Install the Exhaust Pressure (EP) sensor flare nut on the RH turbocharger inlet pipe.

    • Hand tighten the Exhaust Pressure (EP) sensor flare nut.

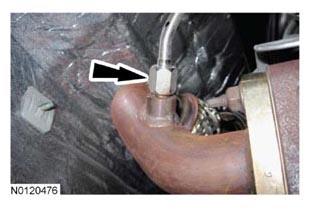

      Fig 2: Locating Exhaust Pressure Sensor Flare Nut
      G08603741Courtesy of FORD MOTOR CO.
  6. Tighten the 3 RH turbocharger inlet pipe nuts.
    • Tighten to 25 Nm (18 lb-ft).
  7. Engage the RH turbocharger inlet pipe clamp T-bolt.
    • With the nut and the T-bolt in the vertical position, tighten to specifications.
      • Tighten to 15 Nm (133 lb-in).
  8. Tighten the Exhaust Pressure (EP) sensor flare nut on the RH turbocharger inlet pipe.
    • Tighten to 20 Nm (177 lb-in).

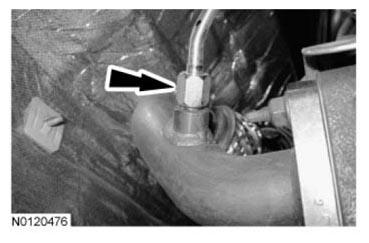

      Fig 3: Locating Exhaust Pressure Sensor Flare Nut
      G07484266Courtesy of FORD MOTOR CO.
  9. Install the RH fender splash shield. For additional information, refer to FRONT END BODY PANELS .
  10. Install the crankcase vent oil separator. For additional information, refer to ENGINE EMISSION CONTROL .
  11. Install transmission fluid filler tube bracket bolt.
    • Tighten to 11 Nm (97 lb-in).
      Fig 4: Locating Transmission Fluid Filler Tube Bracket Bolt
      G07484259Courtesy of FORD MOTOR CO.
