Exhaust System - 6.7L Diesel Engine with a Muffler
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Exhaust systems will vary by wheelbase, frames will vary by width and length.
NOTE:
Vehicle body removed from art for clarity.

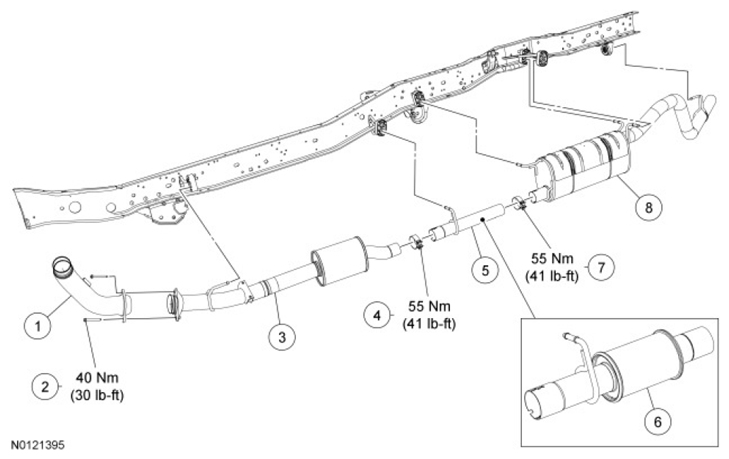

Fig 1: Exhaust System Replacement Components With Torque Specifications (6.7L Diesel Engine With Muffler)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6N647 | Exhaust lower downpipe |
| 2 | W711407 | Exhaust lower downpipe-to-resonator assembly bolt (2 required) |
| 3 | 5A212 | Resonator assembly |
| 4 | 5A281 | Torca® clamp |
| 5 | 5A212 | Exhaust intermediate pipe |
| 6 | 5A212 | Exhaust intermediate pipe with resonator (if equipped) |
| 7 | 5A281 | Torca® clamp |
| 8 | 5230 | Muffler and tail pipe assembly |
