Catalytic Converter - 6.2L: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not tighten any fasteners until all components are aligned.

NOTE: Prior to installation, inspect the Heated Oxygen Sensor (HO2S) and the Catalyst Monitor Sensor (CMS) wiring harness for damage.

NOTE: LH exhaust Y-pipe-to-exhaust manifold flange shown, RH similar.

With the help of an assistant, position the exhaust Y-pipe with dual catalytic converter into the vehicle and loosely install 4 new exhaust Y-pipe-to exhaust manifold flange nuts.

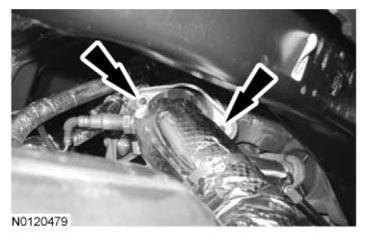

Fig 1: Locating Exhaust Y-Pipe-To-Exhaust Manifold Flange Nuts
Courtesy of FORD MOTOR CO.
Loosely install the 2 exhaust Y-pipe with dual catalytic converter-to-resonator bolts.
Make sure the exhaust Y-pipe with dual catalytic converter-to-resonator Torca® clamp is positioned correctly on the resonator.
NOTE: Make sure the exhaust Y-pipe with dual catalytic converter is aligned to provide maximum clearance to adjacent parts.

To seat the LH exhaust Y-pipe-to-exhaust manifold nuts, tighten the nuts in the following sequence.
- Tighten the lower LH exhaust Y-pipe-to-exhaust manifold nut to 20 Nm (177 lb-in).
- Tighten the upper LH exhaust Y-pipe-to-exhaust manifold nut to 40 Nm (30 lb-ft).
- Tighten the lower LH exhaust Y-pipe-to-exhaust manifold nut to 40 Nm (30 lb-ft).

  Fig 2: Locating Exhaust Y-Pipe-To-Exhaust Manifold Flange Nuts
  Courtesy of FORD MOTOR CO.
NOTE: Make sure the exhaust Y-pipe with dual catalytic converter is aligned to provide maximum clearance to adjacent parts.

To seat the RH exhaust Y-pipe-to-exhaust manifold nuts, tighten the nuts in the following sequence.
- Tighten the lower RH exhaust Y-pipe-to-exhaust manifold nut to 20 Nm (177 lb-in).
- Tighten the upper RH exhaust Y-pipe-to-exhaust manifold nut to 40 Nm (30 lb-ft).
- Tighten the lower RH exhaust Y-pipe-to-exhaust manifold nut to 40 Nm (30 lb-ft).

  Fig 3: Locating RH Exhaust Y-Pipe-To-Exhaust Manifold Nuts
  Courtesy of FORD MOTOR CO.
Tighten the 2 exhaust Y-pipe with dual catalytic converter-to-resonator bolts.
- Tighten to 40 Nm (30 lb-ft).
Tighten the 2 Torca® clamp nuts.
- Tighten to 48 Nm (35 lb-ft).
Connect the 2 Heated Oxygen Sensor (HO2S) and the 2 Catalyst Monitor Sensor (CMS) electrical connectors.
