Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.
WARNING: Before installing a Safety Canopy or side air curtain assembly, inspect the roofline for any damage. If necessary, the sheet metal must be reworked to its original condition and structural integrity. Install new fasteners if damaged and remove foreign material. Failure to follow these instructions may result in the Safety Canopy or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
WARNING: Inspect a Safety Canopy® or side air curtain module before installation. If the module is damaged, the cover has separated or the Safety Canopy® or side air curtain material has been exposed, install a new module. Do not attempt to repair the module. Failure to follow these instructions may result in the Safety Canopy® or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
NOTE: Removal steps in this procedure may contain installation detail.
NOTE: RH side shown in illustration and similar to LH side unless qualified otherwise.
  1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

    If a SRS  fault is present, continue to step 2. Otherwise, turn the ignition off, wait at least one minute and continue to step  3.

  2. Depower the SRS  . Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING - WITH INTELLIGENT ACCESS (IA)  or SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING - WITHOUT INTELLIGENT ACCESS (IA) .
  3. Remove the headliner. Refer to INTERIOR TRIM AND ORNAMENTATION .
  4. 11 Nm (97 lb-ft).

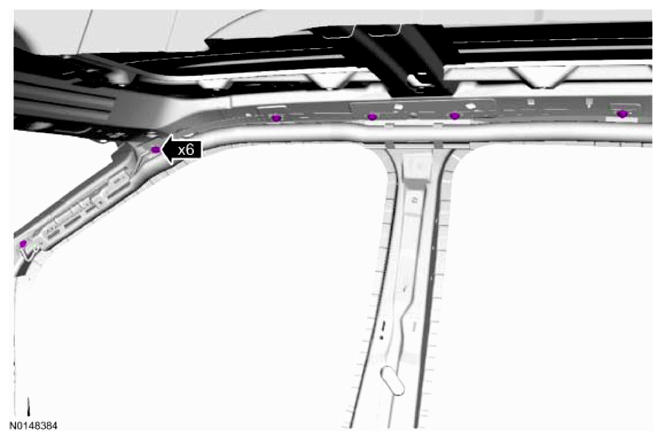

    G09091695Courtesy of FORD MOTOR CO.
  5. If equipped.

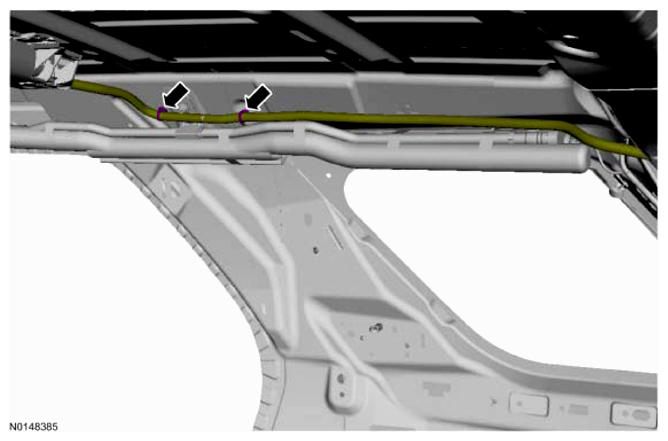

    G09091696Courtesy of FORD MOTOR CO.
    • 11 Nm (97 lb-ft).

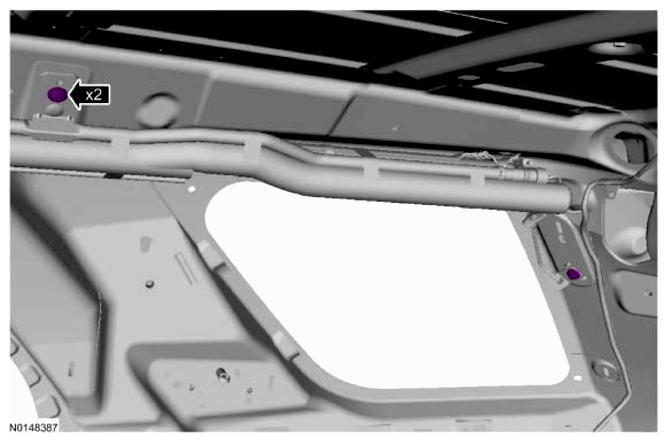

      G09091697Courtesy of FORD MOTOR CO.
  7. LH side.
    • 11 Nm (97 lb-ft).

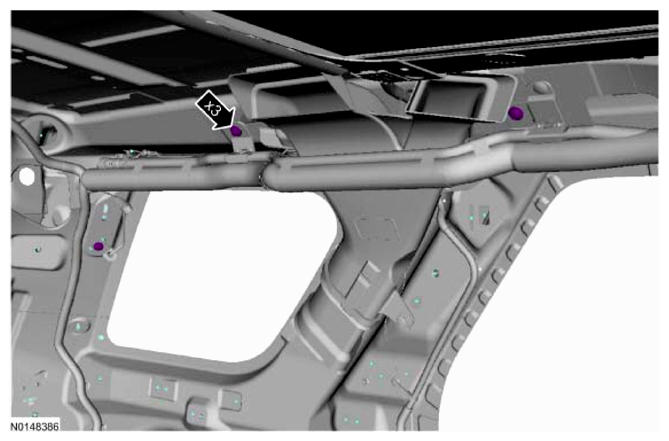

      G09091698Courtesy of FORD MOTOR CO.
  8. 11 Nm (97 lb-ft).

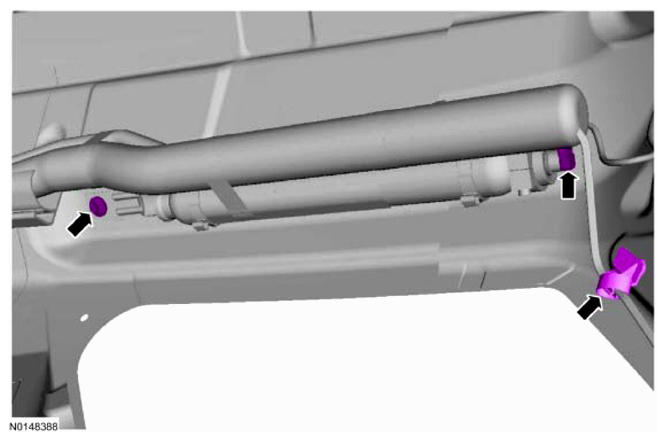

    G09091699Courtesy of FORD MOTOR CO.

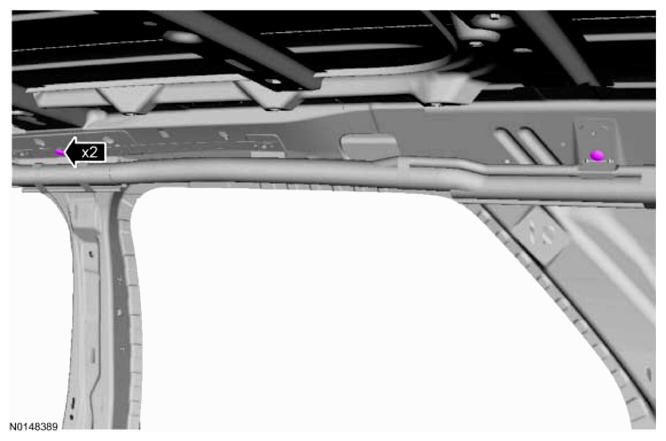

  9. G09091700Courtesy of FORD MOTOR CO.

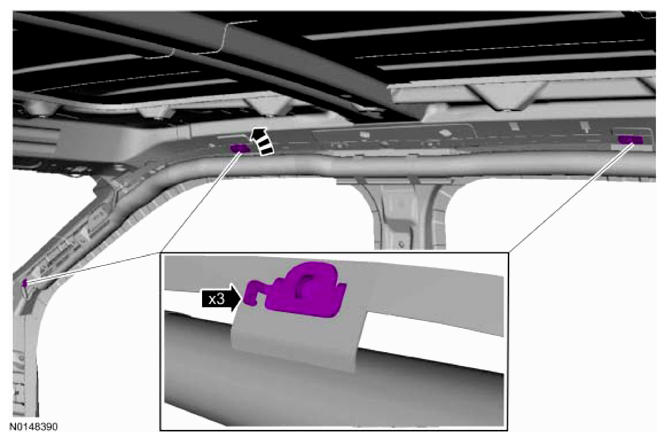

  10. G09091701Courtesy of FORD MOTOR CO.

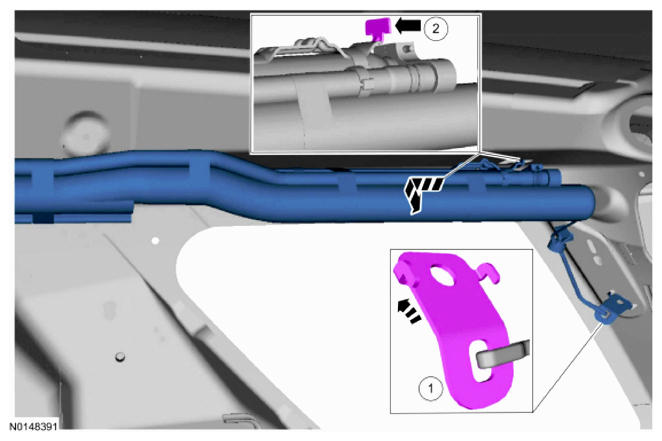

  11. G09091702Courtesy of FORD MOTOR CO.
  12. To install, reverse the removal procedure.
  13. If the SRS  was depowered, repower the SRS  . Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING - WITH INTELLIGENT ACCESS (IA)  or SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING - WITHOUT INTELLIGENT ACCESS (IA) .
