Wheel Studs - Dual Rear Wheel (DRW): Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

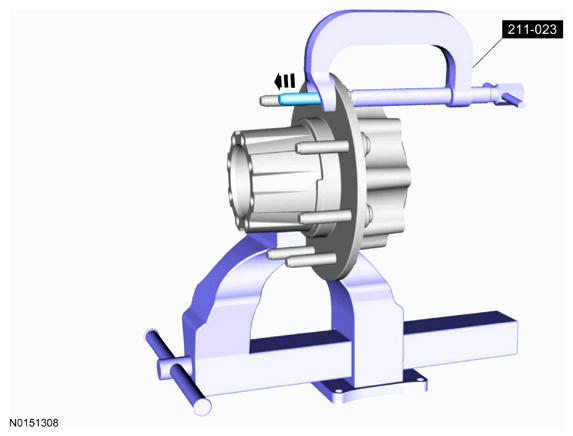

  1. Special tool(s): C-Frame and Screw Assembly 211-023.
    G08600441
  2. Install the rear wheel hub assembly. Refer to WHEEL HUBS AND BEARNGS - FULL FLOATING AXLE - DANA .
