Spring - F-250, F-350: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

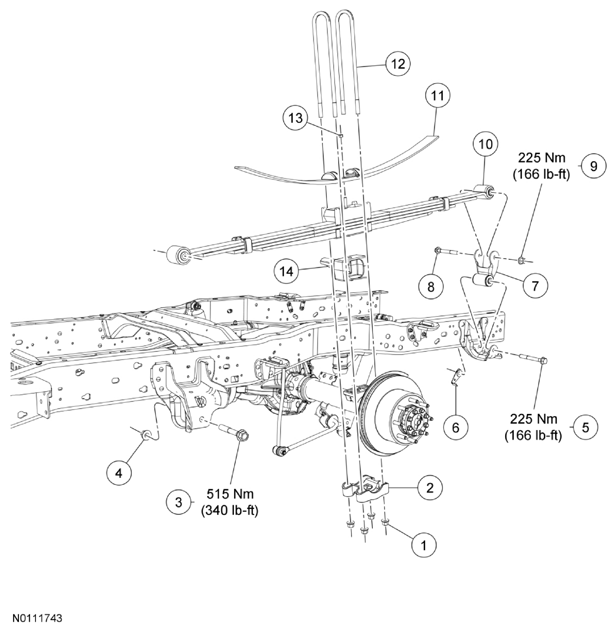

Pickup shown, other vehicles similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | N620485 | U-bolt nut (4 required) |
| 2 | 5796 | Bottom cap |
| 3 | W714005 | Spring-to-front bracket bolt |
| 4 | W520117 | Spring-to-front bracket nut |
| 5 | W715138 | Shackle-to-rear bracket bolt |
| 6 | W711218 | Shackle-to-rear bracket flagnut |
| 7 | 5776 | Spring shackle |
| 8 | W714456 | Spring-to-shackle bolt |
| 9 | N620485 | Spring-to-shackle nut |
| 10 | 5560/5A975 | Spring assembly |
| 11 | 5588 | Auxiliary spring |
| 12 | 5705 | U-bolt (2 required) |
| 13 | - | Auxiliary spring nut (part of 5588) |
| 14 | 5598 | Spacer |
