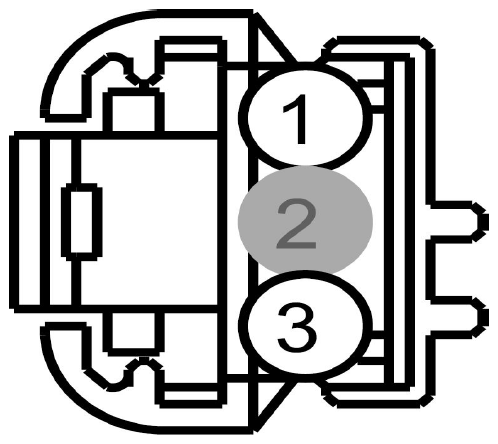

Tweeter, Left Rear D-Pillar Connector End View (C4337)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VME39 (GN-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER REAR TWEETER | |
| 2 | * | * | Not Used | |
| 3 | RME39 (GY-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER |

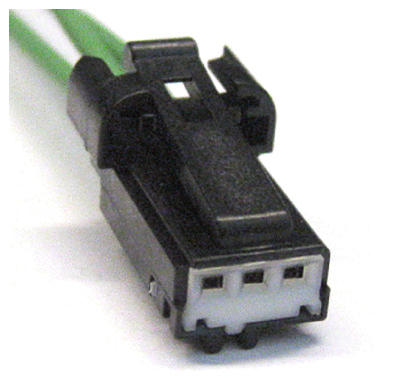

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-911 | Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses
|
