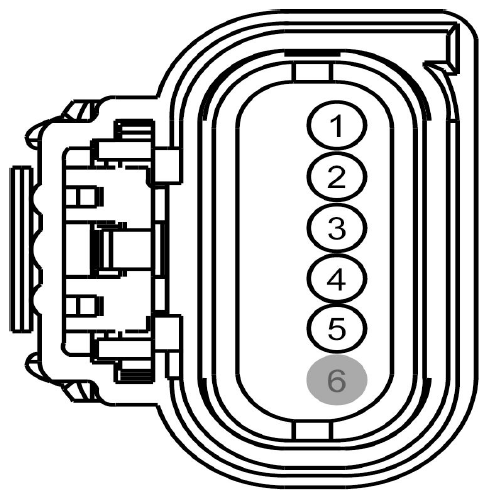

Side Obstacle Detection Control Module - Left (Sod-L) Connector End View (C4369)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CRB04 (YE-GN) | 20 | SENSOR - BLINDSPOT WARNING LEFT HAND # WARNING ALERT | |
| 2 | CBP34 (VT-BN) | 20 | FUSE - 34 OR CIRCUIT BREAKER | |
| 3 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 4 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 5 | GD351 (BK-GN) | 20 | GROUND - PILLAR D RIGHT | |
| 6 | * | * | Not Used |
