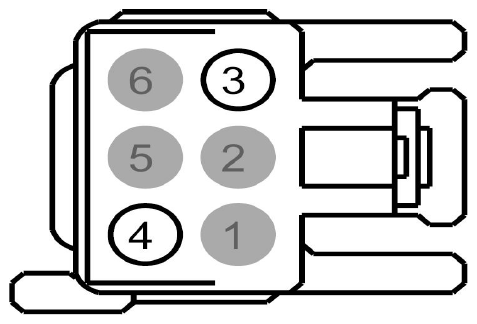

Seat Control Switch, Second Row, Left Connector End View (C3343)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CLN09 (YE-GN) | 20 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
| 4 | CPS56 (GN-BN) | 20 | SWITCH - 2ND ROW SEAT RELEASE LEFT | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used |

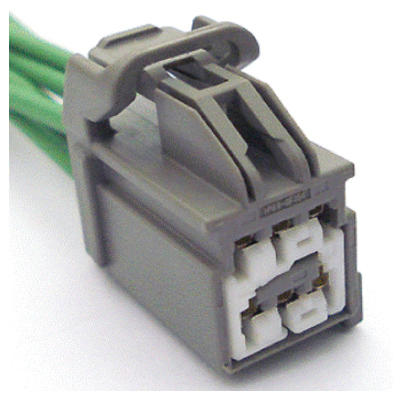

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-962 | Service Part Number: 3U2Z- 14S411-JBB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses
|
