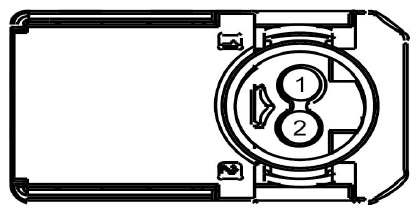

Safety Belt Inflator, 2ND Row, Right Connector End View (C3645)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR125 (BU-BN) | 20 | CTRL MOD. - SEAT BELT INFLATOR ROW 2 RH SIDE OUTBOARD + | |
| 2 | RR125 (GN) | 20 | CTRL MOD. - SEAT BELT INFLATOR ROW 2 RH SIDE OUTBOARD - |
| Available Pigtail Kits | |
|---|---|

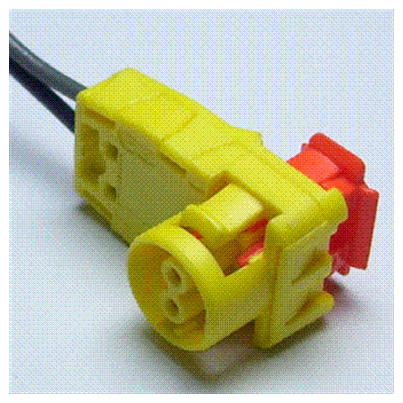

| Pigtail Kit Part Number WPT-1227 | Service Part Number: BU2Z-14S411-BKA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
