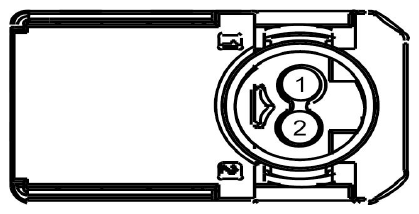

Safety Belt Inflator, 2ND Row, Left Connector End View (C3644)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR123 (GN-VT) | 20 | CTRL MOD. - SEAT BELT INFLATOR ROW 2 LH SIDE + | |
| 2 | RR123 (GY) | 20 | CTRL MOD. - SEAT BELT INFLATOR ROW 2 LH SIDE - |
| Available Pigtail Kits | |
|---|---|

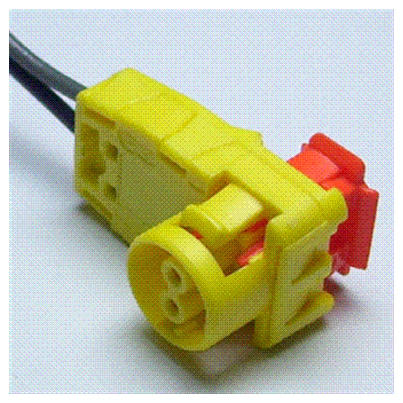

| Pigtail Kit Part Number WPT-1227 | Service Part Number: BU2Z-14S411-BKA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
