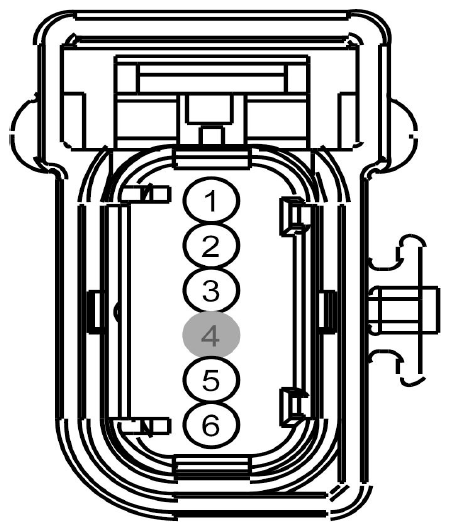

Safety Belt Buckle, Passenger Connector End View (C3238)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VR210 (BU-BN) | 20 | SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD | |
| 2 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD | |
| 3 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT RESTRIANTS | |
| 4 | * | * | Not Used | |
| 5 | CR203 (GY-VT) | 20 | SENSOR - SEAT BELT BUCKLE FRONT PASSENGER OUTBOARD | |
| 6 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT RESTRIANTS |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1329 | Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses
|
