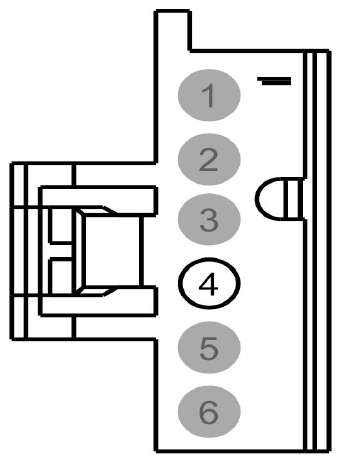

Power-Fold Seat Module (PFSM) Connector End View (C4250E)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
CPS48 (BU) |
20 |
CTRL MOD. - RELAY(S) 3RD ROW SEAT (ENABLE) |
late production |
| 4 |
CPS58 (WH-BN) |
20 |
CTRL MOD. - RELAY(S) 3RD ROW SEAT (ENABLE) |
early production |
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
