Power-Fold Seat Module (PFSM) Connector End View (C4250A)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

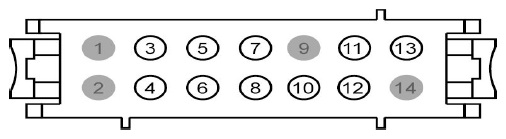

Fig 1: Identifying Power-Fold Seat Module Connector End View (C4250A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	CPSA8 (GY-OG)	16	CTRL MOD. - 3RD ROW REAR LEFT LATCH MOTOR	late production
3	CPS05 (BU-WH)	14	CTRL MOD. - 3RD ROW REAR LEFT LATCH MOTOR	early production
4	CPS74 (VT-WH)	14	CTRL MOD. - 3RD ROW REAR RIGHT LATCH MOTOR	early production
4	CPSB9 (VT-BN)	16	CTRL MOD. - 3RD ROW REAR RIGHT LATCH MOTOR	late production
5	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	early production
5	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	late production
6	CPS04 (YE-OG)	14	CTRL MOD. - 3RD ROW REAR LATCH MOTOR RETURN	early production
6	CPSA9 (VT-OG)	16	CTRL MOD. - 3RD ROW REAR LATCH MOTOR RETURN	late production
7	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	late production
7	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	early production
8	CBB18 (GY-OG)	12	RELAY - 3RD ROW SEAT	early production
8	CBB22 (GN-OG)	12	RELAY - 3RD ROW SEAT	late production
9	*	*	Not Used
10	GD349 (BK-GY)	12	GROUND - PILLAR D LEFT	late production
10	GD149 (BK-GY)	14	GROUND - PILLAR D LEFT	early production
11	CPS57 (GY-BN)	20	SWITCH - 3RD ROW SEAT LATCH RIGHT	early production
11	CPSC0 (BU-GY)	20	SWITCH - 3RD ROW SEAT LATCH RIGHT	late production
12	RPSB0 (BN-WH)	20	SWITCH - 3RD ROW SEAT LATCH RETURN	late production
12	CPS51 (VT-GY)	20	SWITCH - 3RD ROW SEAT LATCH RETURN	early production
13	CPS56 (GN-BN)	20	SWITCH - 3RD ROW SEAT LATCH LEFT	early production
13	CPSB0 (YE-OG)	20	SWITCH - 3RD ROW SEAT LATCH LEFT	late production
14	*	*	Not Used
