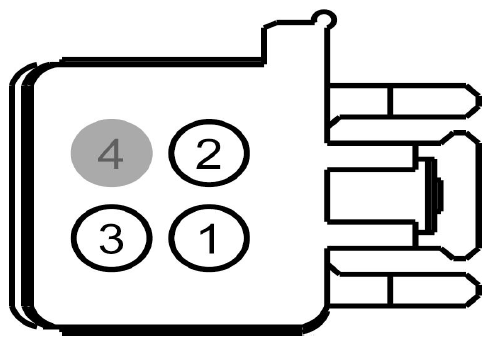

Power Release Seat Motor, Second Row, Left Connector End View (C3345)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB60 (GN-RD) | 16 | FUSE - 61 OR CIRCUIT BREAKER | |
| 2 | GD233 (BK) | 16 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 3 | CPS56 (GN-BN) | 20 | SWITCH - 2ND ROW SEAT RELEASE LEFT | |
| 4 | * | * | Not Used |

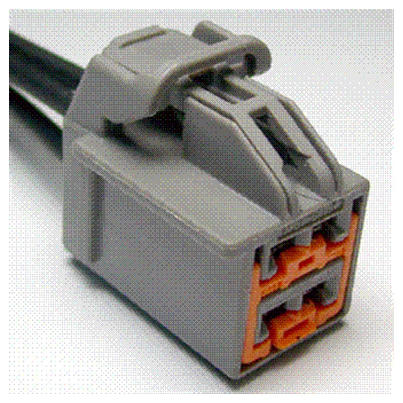

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1260 | Service Part Number: CU2Z-14S411-JA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses
|
