Power Liftgate Chime Connector End View (C4186)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

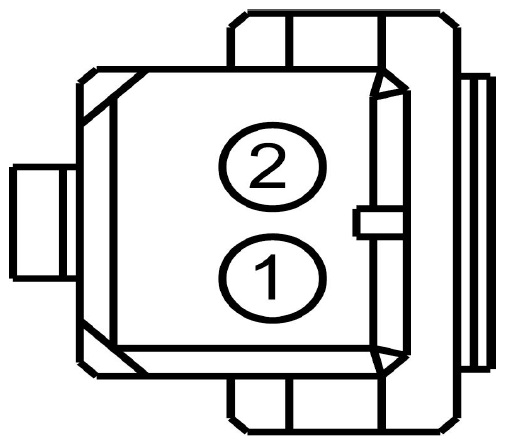

Fig 1: Identifying Power Liftgate Chime Connector End View (C4186)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPR56 (GY-VT)	22	CTRL MOD. - POWER LIFTGATE # CHIME
2	CPR56 (VT-BN)	22	CTRL MOD. - POWER LIFTGATE # CHIME

Available Pigtail Kits

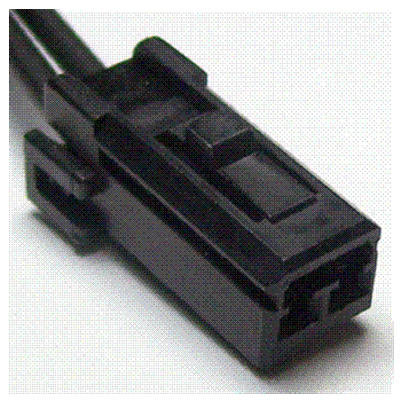

Pigtail Kit Part Number WPT-1322	Service Part Number: 3U2Z-14S411-CSAB Gauge: 18 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Lamp - Dome Lamp - Dome/Map Module - Radio Power Antenna Module - Warning Chime/Beltminder Solenoid - Brake Shift Park Interlock Speaker - Reverse Park Aid (RPA)

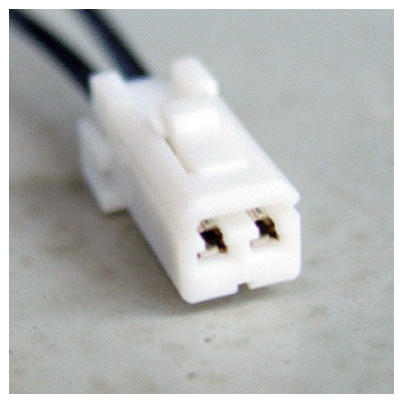

Pigtail Kit Part Number WPT-675	Service Part Number: 3U2Z-14S411-CSAA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - PRNDL Indicator Module - Driver Door Module - Heated Seat (driver) Sensor - Fuel Tank Temperature
