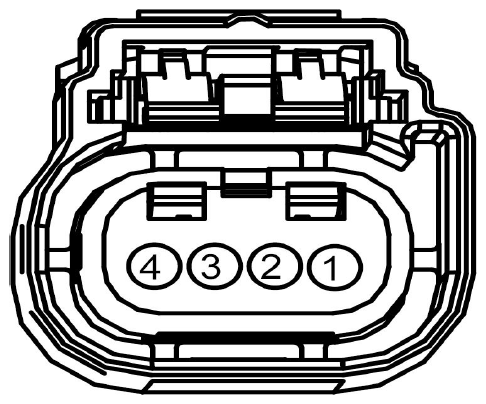

Passive Start Antenna, Rear Connector End View (C4378)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VPK08 (WH-OG) | 18 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR | |
| 2 | RPK08 (BN-VT) | 18 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |

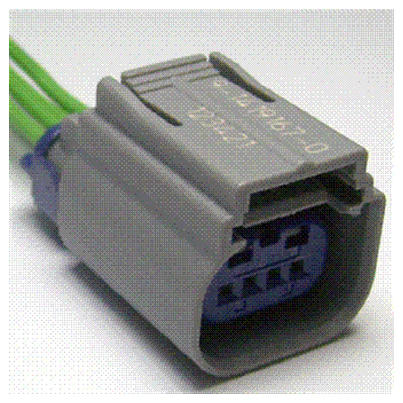

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1328 | Service Part Number: DU2Z-14S411-AA Gauge: 20 Pin material: Silver Cavities: 4 Vehicle Uses
|
