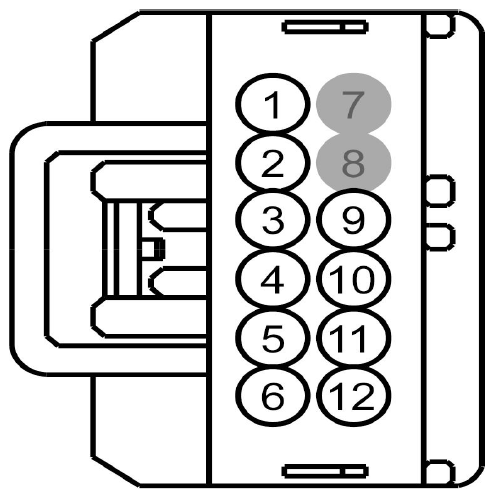

Media Hub Connector End View (C3618)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LME89 (YE) | 26 | CTRL MOD. - MEDIA CONNECTIVITY POWER | |
| 2 | DME88 (*) | 20 | JACK - VIDEO # EXT. AUX IN | |
| 3 | VME88 (BU-WH) | 22 | JACK - VIDEO # EXT. AUX IN (+) | |
| 4 | DME45 (*) | 20 | JACK - AUDIO # EXT. AUX IN | |
| 5 | VME45 (BU) | 26 | JACK - AUDIO # EXT. AUX IN LEFT (+) | |
| 6 | RME45 (YE) | 26 | JACK - AUDIO # EXT. AUX IN LEFT (-) | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | RME88 (GN-BU) | 22 | JACK - VIDEO # EXT. AUX IN (-) | |
| 10 | RME89 (WH-BU) | 22 | CTRL MOD. - MEDIA CONNECTIVITY GROUND | |
| 11 | VME46 (GN) | 26 | JACK - AUDIO # EXT. AUX IN RIGHT (+) | |
| 12 | RME46 (WH) | 26 | JACK - AUDIO # EXT. AUX IN RIGHT (-) |

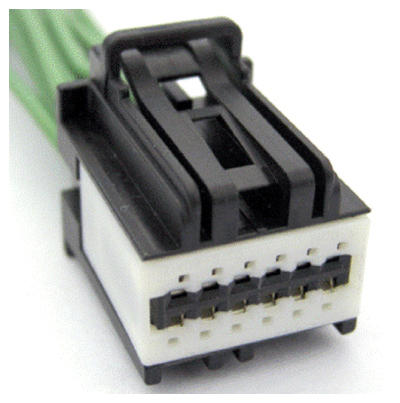

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-930 | Service Part Number: 9U2Z-14S411-DA Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses
|
