Liftgate/Trunk Module (LTM) Connector End View (C4174A)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

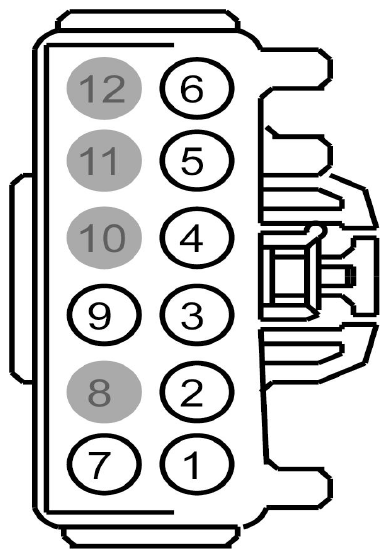

Fig 1: Identifying Liftgate/Trunk Module Connector End View (C4174A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	GD349 (BK-GY)	10	GROUND - PILLAR D LEFT
2	CPR61 (BN)	14	CTRL MOD. - POWER LIFTGATE # CINCH
3	CPR62 (WH-BU)	14	CTRL MOD. - POWER LIFTGATE # UNCINCH
4	SBB07 (WH-RD)	10	FUSE - 7 OR CIRCUIT BREAKER
5	CPR57 (GN-WH)	12	CTRL MOD. - POWER LIFTGATE # OPEN
6	CPR58 (GN-OG)	12	CTRL MOD. - POWER LIFTGATE # CLOSE
7	GD349 (BK-GY)	20	Not Used
8	*	*	Not Used
9	SBP09 (RD)	20	FUSE - 9 OR CIRCUIT BREAKER
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used

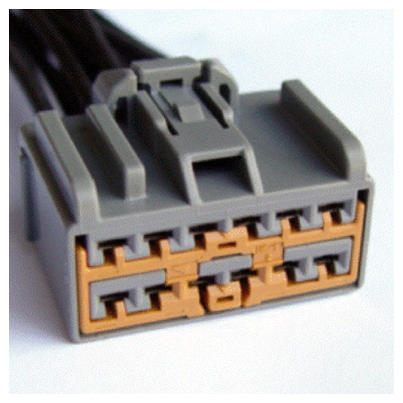

Available Pigtail Kits
Pigtail Kit Part Number WPT-396	Service Part Number: 3U2Z-14S411-BKA Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses Module - Liftgate Switch - Headlamp Switch - Seat (driver) Switch - Seat (passenger)
