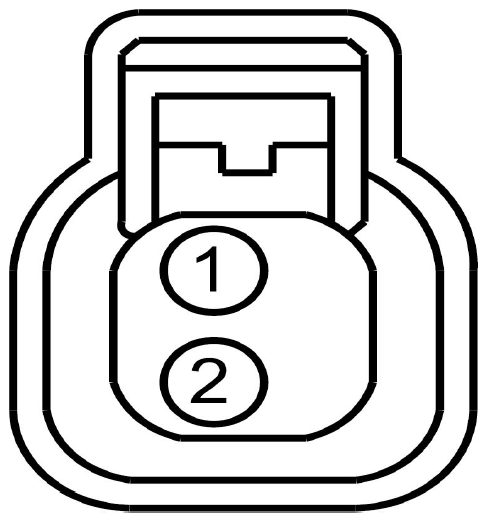

Liftgate Release Switch Connector End View (C4216)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
GD349 (BK-GY) |
20 |
GROUND - PILLAR D LEFT |
|
| 2 |
CPL45 (BN) |
20 |
SWITCH - LIFTGATE/DECKLID RELEASE |
|
| Available Pigtail Kits |
|

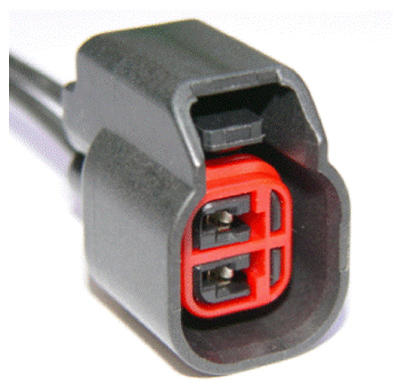

| Pigtail Kit Part Number WPT-815
|
Service Part Number: 3U2Z-14S411-BXAA
Gauge: 16
Pin material: Tin
Cavities: 2
Vehicle Uses
- A/C Compressor Clutch
- Control - Navigation Display
- Fuel Pump/Sending Unit
- Lamp - Headlamp Switch
- Module - Ignition
- Motor - Transfer Case Electronic Shift
- Pretensioner - Seat Belt (Passenger)
- Pump - Vacuum
- Relay - Flasher
- Sensor - Cam Shaft Position
- Sensor - Delta Pressure Feedback EGR
- Sensor - Fuel Filler Door
- Sensor - Fuel Level
- Sensor - Fuel Rail Pressure
- Sensor - Fuel Rail Temperature
- Sensor - Fuel Tank Pressure Transducer
- Sensor - Headlamp Leveling
- Sensor - Input Shaft Speed
- Sensor - Intake Manifold Runner Control
- Sensor - Manifold Absolute Pressure (MAP)
- Sensor - Mass Air Flow
- Sensor - Oil Pressure
- Sensor - Steering Wheel Position
- Sensor - Sunload
- Speaker - Reverse Park Aid (RPA)
|

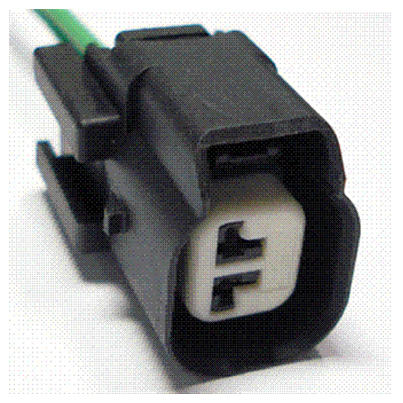

| Pigtail Kit Part Number WPT-984
|
Service Part Number: 3U2Z-14S411-BXAB
Gauge: 16
Pin material: Silver
Cavities: 2
Vehicle Uses
- A/C Compressor Clutch
- EGR Cooler Outlet
- Electronic Locking Differential
- Horn
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Rear Park
- Lamp - Reverse
- Lamp - Side Marker
- Motor - Adjustable Pedal
- Sensor - Adjustable Pedal
- Sensor - Brake Fluid Level
- Sensor - Cam Shaft Position
- Sensor - Cylinder Head Temperature
- Sensor - Exhaust Gas Temperature
- Sensor - Liftgate Obstacle
- Sensor - Oil Level
- Sensor - Output Shaft Speed
- Sensor - Speed
- Solenoid - Engine Variable Timing
- Speaker - Door
- Speaker - Front
- Speaker - Rear
- Speaker - Subwoofer
- Speaker - Tweeter - LH - Front
- Switch - A/C Compressor Clutch Cycling
- Switch - Backup Lamp
- Switch - Deck Lid/Hatch Release
- Switch - Deck Lid/Lift Gate Ajar
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Power Liftgate
- Switch - Reverse Park Aid
|
