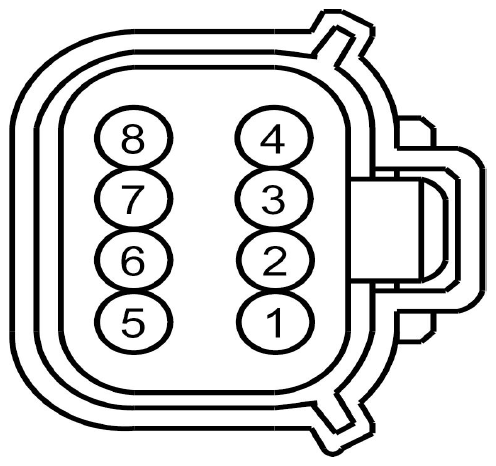

Liftgate Latch/Unlatch Assembly Connector End View (C4819)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPR64 (VT-OG) | 22 | LATCH - LIFTGATE # LATCH SWITCH HALF | |
| 2 | CPR66 (GY-YE) | 22 | LATCH - LIFTGATE # RATCHET SWITCH | |
| 3 | CPR65 (BU-GN) | 22 | LATCH - LIFTGATE # LATCH SWITCH FULL | |
| 4 | CPR68 (YE) | 22 | LATCH - LIFTGATE # SECTOR GEAR SWITCH 2 | |
| 5 | CPR61 (BN) | 14 | CTRL MOD. - POWER LIFTGATE # CINCH | |
| 6 | CPR67 (VT) | 22 | LATCH - LIFTGATE # SECTOR GEAR SWITCH 1 | |
| 7 | CPR62 (WH-BU) | 14 | CTRL MOD. - POWER LIFTGATE # UNCINCH | |
| 8 | GD349 (BK-GY) | 20 | GROUND - PILLAR D LEFT |
| Available Pigtail Kits | |
|---|---|

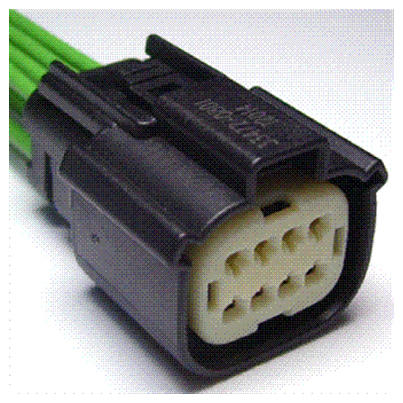

| Pigtail Kit Part Number WPT-1276 | Service Part Number: CU2Z-14S411-ALA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
