Inline Connector End View (C4818)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

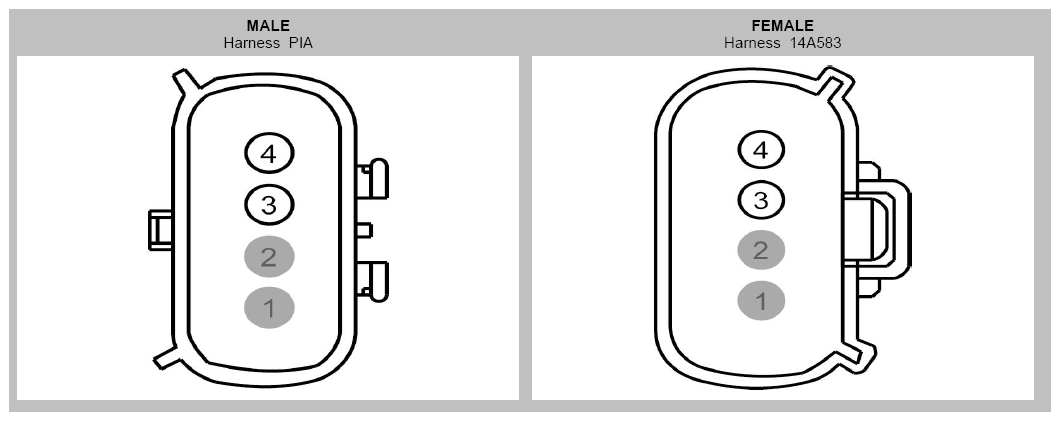

Fig 1: Identifying Inline Connector End View (C4818)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	CPL45 (BN)	*	PIA
3	CPL45 (BN)	20	14A583
4	GD349 (BK-GY)	*	PIA
4	GD349 (BK-GY)	20	14A583
