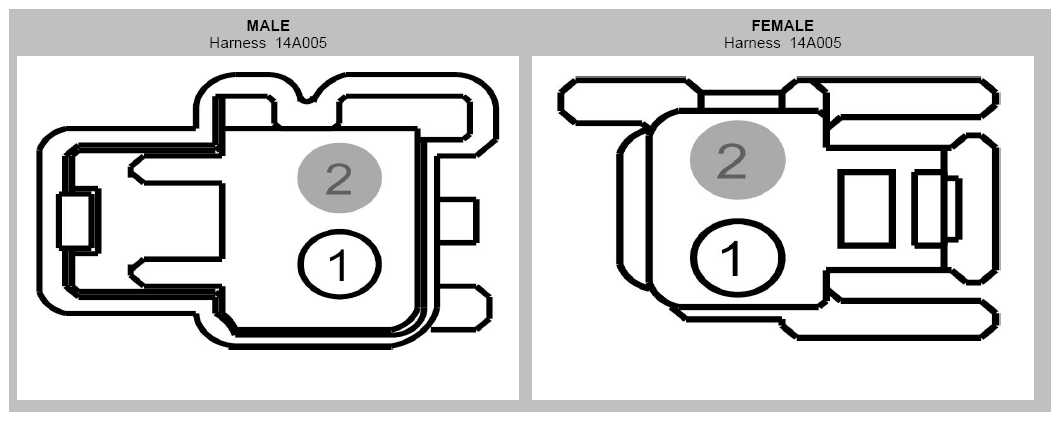

Inline Connector End View (C3206)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CPW14 (VT-WH) | 22 | |
| 2 | * | * |
| Available Pigtail Kits | |
|---|---|

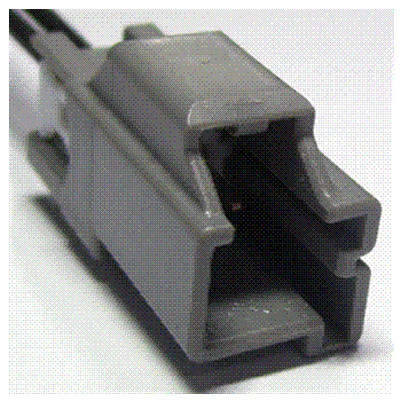

| Pigtail Kit Part Number WPT-1078 | Service Part Number: 3U2Z-14S411-LAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses:
|
