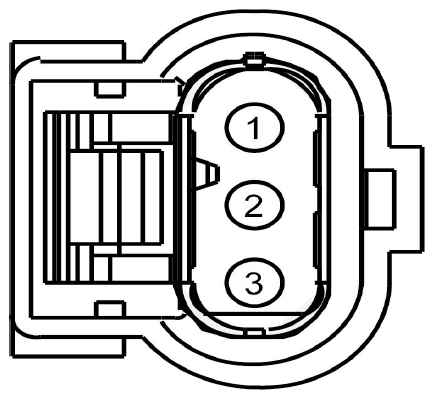

Fuel PRESSRE Sensor Connector End View (C3643)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE830 (GN-WH) | 18 | SENSOR - FUEL LOW PRESSURE (FLP) | |
| 2 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
| 3 | LE230 (BN-BU) | 18 | CTRL MOD. - POWERTRAIN # REFERENCE VOLTAGE (VREF) |

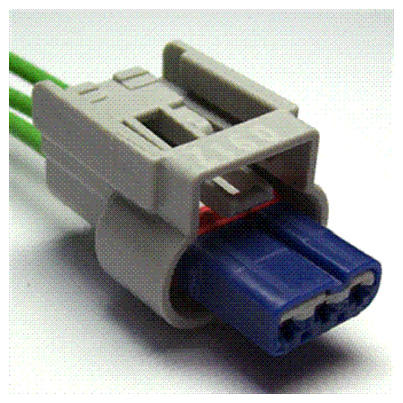

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1308 | Service Part Number: CU2Z-14S411-AVA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses
|
