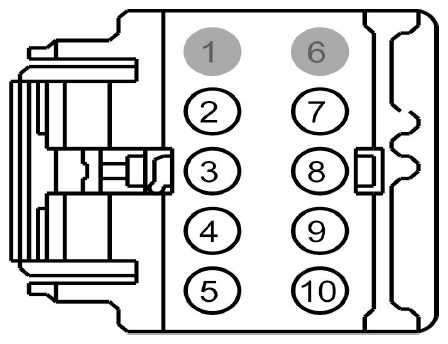

Dual Climate Controlled Seat Module (DCSM) Connector End View (C3265B)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | VHS27 (WH-OG) | 18 | SENSOR - CUSHION TEMP. PASSENGER | |
| 3 | RHS10 (BU-OG) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. | |
| 4 | VHS36 (YE-BU) | 18 | SENSOR - BACK TEMP. PASSENGER | |
| 5 | RHS20 (GN-BU) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP. | |
| 6 | * | * | Not Used | |
| 7 | VHS26 (VT) | 20 | SENSOR - CUSHION TEMP. DRIVER | |
| 8 | RHS05 (YE-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. | |
| 9 | CHS14 (GN) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH | |
| 10 | CHS29 (WH-BU) | 20 | SWITCH - SEAT HEATER FRONT DRIVER SIDE |

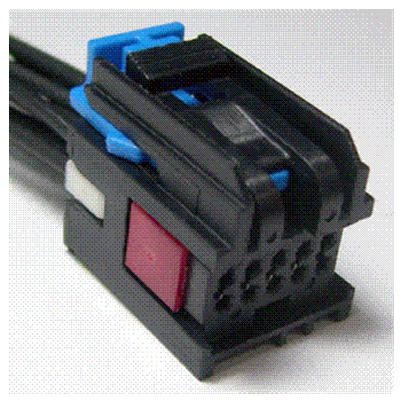

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1174 | Service Part Number: AU2Z-14S411-BLA Gauge: 20 Pin material: Tin Cavities: 10 Vehicle Uses
|
