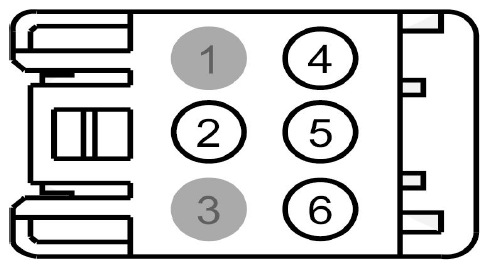

Dc/Ac Inverter Module Connector End View (C3501A)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | CBP32 (GN-VT) | 18 | FUSE - 32 OR CIRCUIT BREAKER | |
| 3 | * | * | Not Used | |
| 4 | SBB17 (RD) | 10 | FUSE - 17 OR CIRCUIT BREAKER | |
| 5 | VDN01 (BU-WH) | 22 | CTRL MOD. - LIN BUS # SPDJB 1 | |
| 6 | GD348 (BK-YE) | 10 | GROUND - PILLAR C OR QUARTER PANEL RIGHT |
| Available Pigtail Kits | |
|---|---|

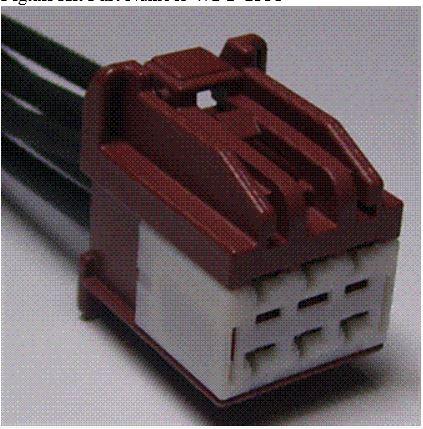

| Pigtail Kit Part Number WPT-1335 | Service Part Number: DU2Z-14S411-JA Gauge: 12 Pin material: Tin Cavities: 6 Vehicle Uses
|
