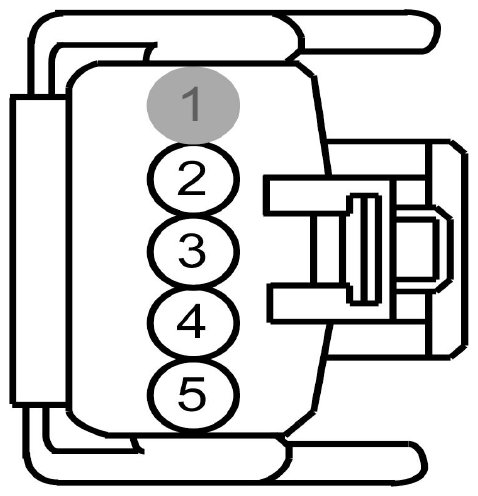

Backup Transceiver Connector End View (C3371)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | VPK33 (WH) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA AUXILIARY/BACKUP CLOCK | |
| 3 | VPK32 (WH-BU) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA AUXILIARY/BACKUP | |
| 4 | RPK32 (YE-GY) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA AUXILIARY/BACKUP | |
| 5 | LPK32 (GN-BU) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA AUXILIARY/BACKUP |
