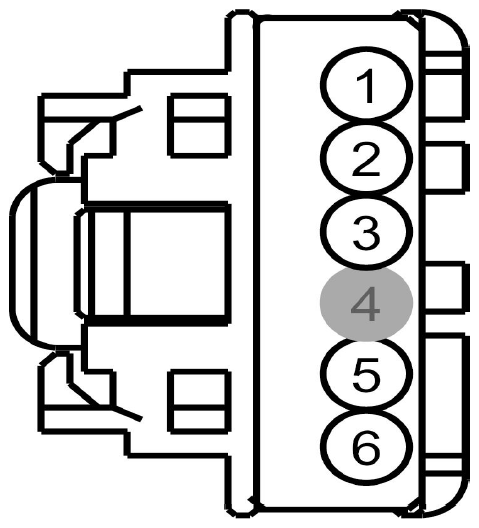

Temperature Blend Door Actuator, RH Side Connector End View (C2092)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LH111 (BN-WH) | 20 | CTRL MOD. - GENERIC VREF | |
| 2 | VH411 (VT-GN) | 20 | SENSOR - DOOR POSITION TEMP. RIGHT | |
| 3 | RH111 (GY-BU) | 20 | CTRL MOD. - GENERIC VREF RETURN | |
| 4 | * | * | Not Used | |
| 5 | CH213 (BN-GN) | 20 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2/OPEN (IF PLUS) | |
| 6 | CH212 (BU-OG) | 20 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1/CLOSE (IF PLUS) |

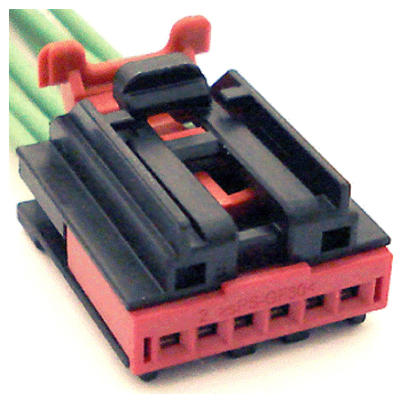

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1049 | Service Part Number: 9U2Z-14S411-UA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
