Start/Stop Switch Connector End View (C2195)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

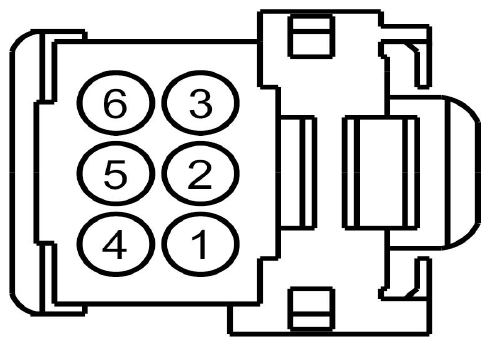

Fig 1: Identifying Start/Stop Switch Connector End View (C2195)

G08749316

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC35 (BU-WH)	22	SWITCH - IGNITION # START
2	CPK36 (VT-BN)	20	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED
3	GD214 (BK-BU)	18	GROUND - INSTRUMENT PANEL STRUCTURE
4	SBP28 (GN-RD)	18	FUSE - 28 OR CIRCUIT BREAKER
5	VLN04 (VT-GY)	20	CTRL MOD. - IP/SWITCH ILLUMINATION
6	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2

Available Pigtail Kits

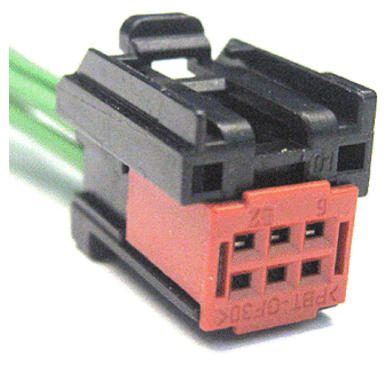

Pigtail Kit Part Number WPT-907	Service Part Number: 8U2Z-14S411-JA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Sensor - Steering Wheel Position Sensor - Sunload Solenoid - Canister Vent Switch - Brake Deactivation Switch - Deck Lid/Hatch Release Switch - Fog Lamp Switch - Hazard Warning Switch - Headlamp/Foglamp

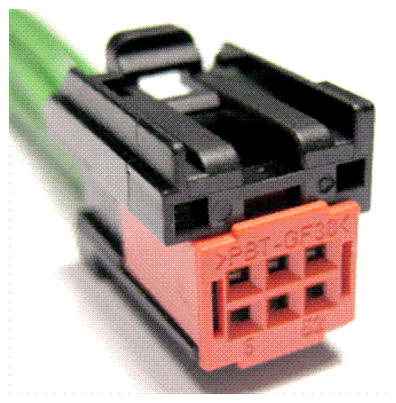

Pigtail Kit Part Number WPT-1164	Service Part Number: 8U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control
