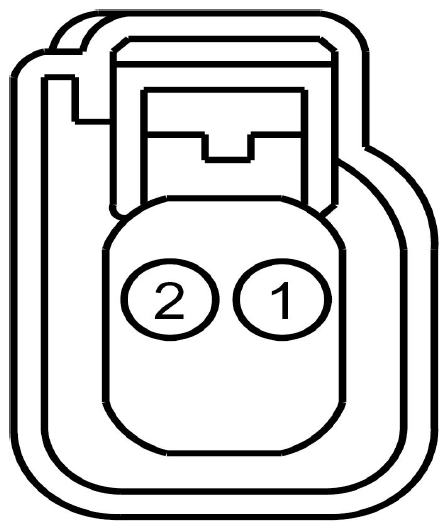

Speaker, Instrument Panel Connector End View (C2356)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
VME06 (GN) |
18 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP |
|
| 2 |
RME06 (GY-YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP |
|
| Available Pigtail Kits |
|

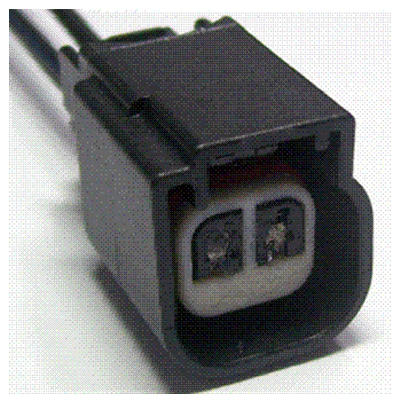

| Pigtail Kit Part Number WPT-1052
|
Service Part Number: 3U2Z-14S411-JLB
Gauge: 14
Pin material: Tin (greased)
Cavities: 2
Vehicle Uses
- A/C Compressor Clutch
- Actuator - Door Lock
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - LH - Sliding Door
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Actuator - Door Lock - RH - Sliding Door
- Actuator - Liftgate Glass
- Lamp - Headlamp - Low Beam
- Lamp - License
- Lamp - Side Marker
- Motor - Power Window - LH - Rear
- Pump - Fuel (External)
- Sensor - Side Impact
- Solenoid - Brake Shift Park Interlock
- Speaker - Door (front)
- Speaker - Door (rear)
- Speaker - Front
- Speaker - Rear
- Speaker - Tweeter - LH - Front
- Speaker - Tweeter - LH - Rear
- Speaker - Tweeter - RH - Front
- Speaker - Tweeter - RH - Rear
|
