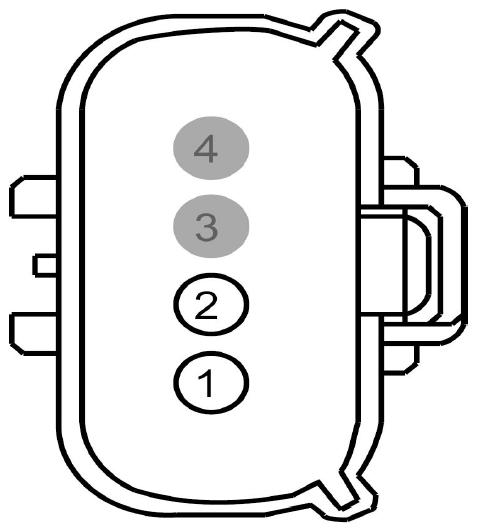

Safety Belt Anchor PRETENSIONER, Passenger Connector End View (C3066)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR171 (GY) | 18 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) + | |
| 2 | RR171 (VT-GN) | 18 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) - | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|

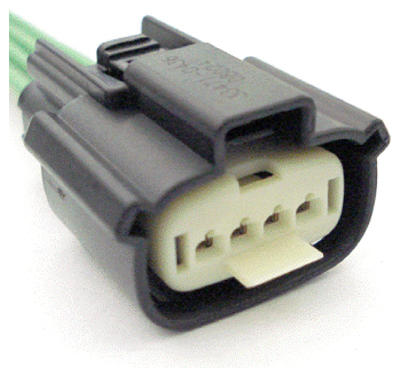

| Pigtail Kit Part Number WPT-940 | Service Part Number: 9U2Z-14S411-MA Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses
|
