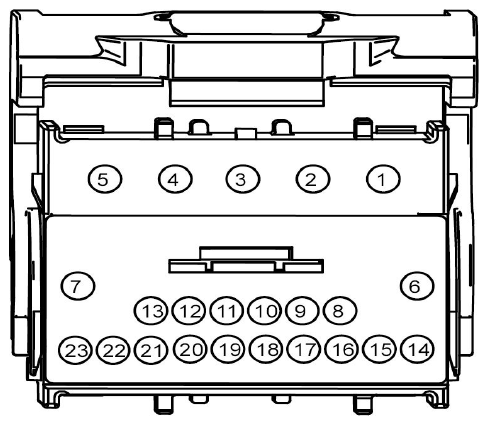

Remote Function Actuator (RFA) Module Connector End View (C2153C)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP23 (WH-RD) | 18 | FUSE - 23 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 4 | * | * | Not Used | |
| 5 | SBP27 (BU-RD) | 16 | FUSE - 27 OR CIRCUIT BREAKER | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE PEDAL POSITION (BPP) NORMAL OPEN | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | CDC35 (BU-WH) | 22 | SWITCH - IGNITION # START | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used |
