Passenger Knee Air Bag Module Connector End View (C2607)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

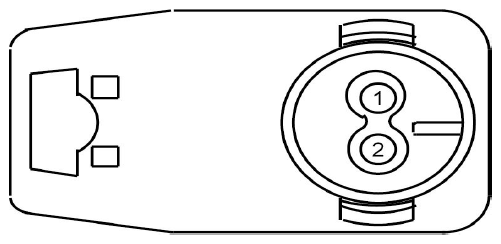

Fig 1: Identifying Passenger Knee Air Bag Module Connector End View (C2607)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR169 (VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE +
2	RR169 (GY-VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE -

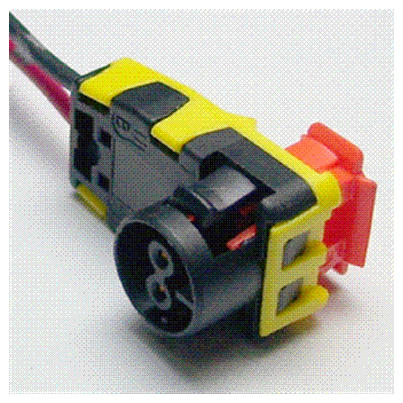

Available Pigtail Kits
Pigtail Kit Part Number WPT-1225	Service Part Number: BU2Z-14S411-BHA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
