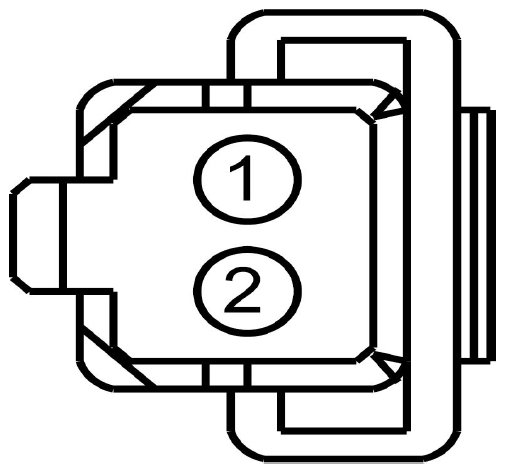

Parking Brake Switch Connector End View (C2015)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CMC25 (WH-VT) | 22 | SWITCH - PARKING BRAKE | |
| 2 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT |
| Available Pigtail Kits | |
|---|---|

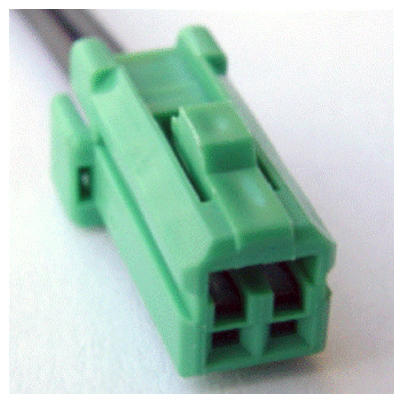

| Pigtail Kit Part Number WPT-1197 | Service Part Number: 3U2Z-14S411-PFB Gauge: 20 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|

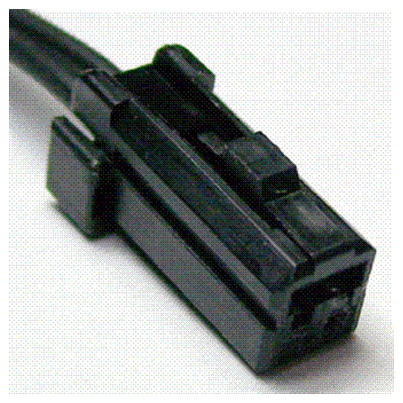

| Pigtail Kit Part Number WPT-479 | Service Part Number: 3U2Z-14S411-PFA Gauge: 20 Pin material: Tin Cavities: 2 Vehicle Uses
|
