Manifold Absolute Pressure/Intake Air Temperature 2 (Map/IAT2) Sensor Connector End View (C1823)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

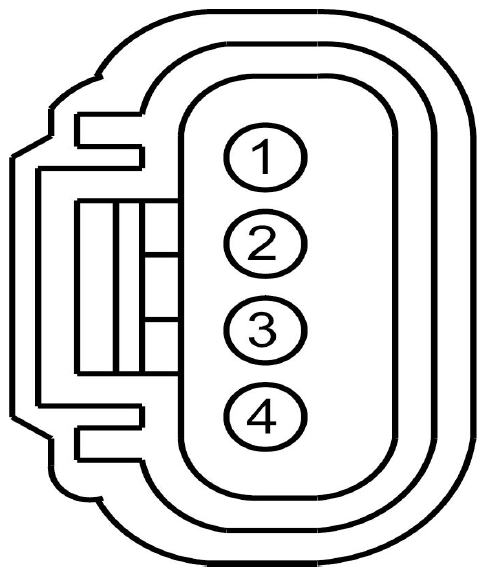

Fig 1: Identifying Manifold Absolute Pressure/Intake Air Temperature 2 Sensor Connector End View (C1823)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE804 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) | |
| 2 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
| 3 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE 2 (IAT2) | |
| 4 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
| Available Pigtail Kits | |
|---|---|

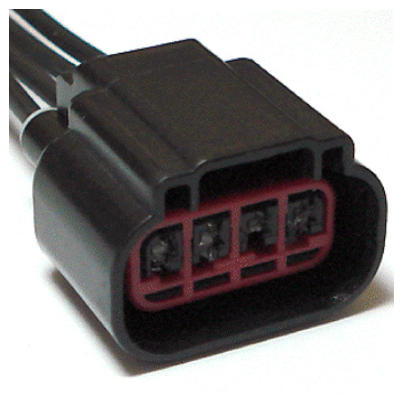

| Pigtail Kit Part Number WPT-508 | Service Part Number: 3U2Z-14S411-SPA Gauge: 16 Pin material: Tin Cavities: 4 Vehicle Uses
|

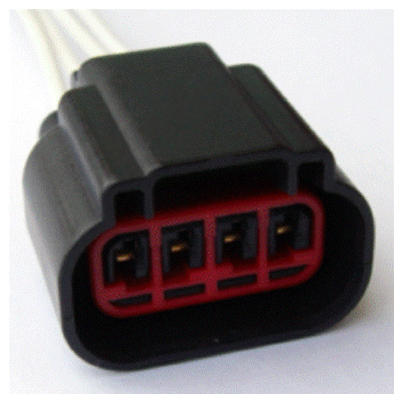

| Pigtail Kit Part Number WPT1339 | Service Part Number: 3U2Z-14S411-SPC Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses
|

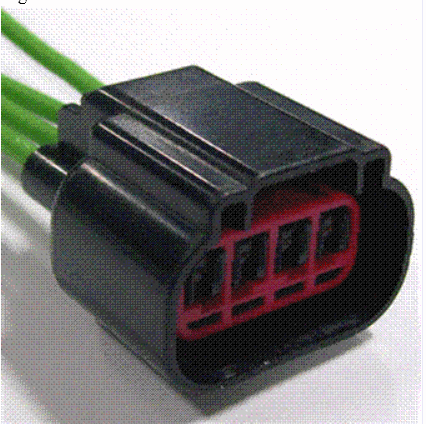

| Pigtail Kit Part Number WPT-509 | Service Part Number: 3U2Z-14S411-SSA Gauge: 18 Pin material: Gold Cavities: 4 Vehicle Uses
|

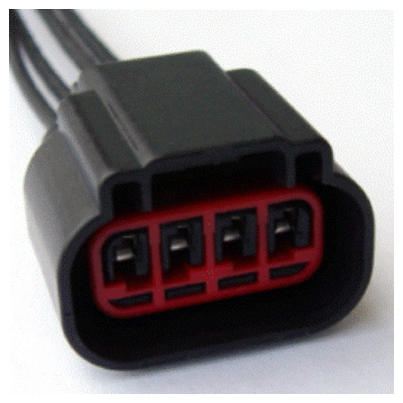

| Pigtail Kit Part Number WPT-1009 | Service Part Number: 3U2Z-14S411-SPB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|
