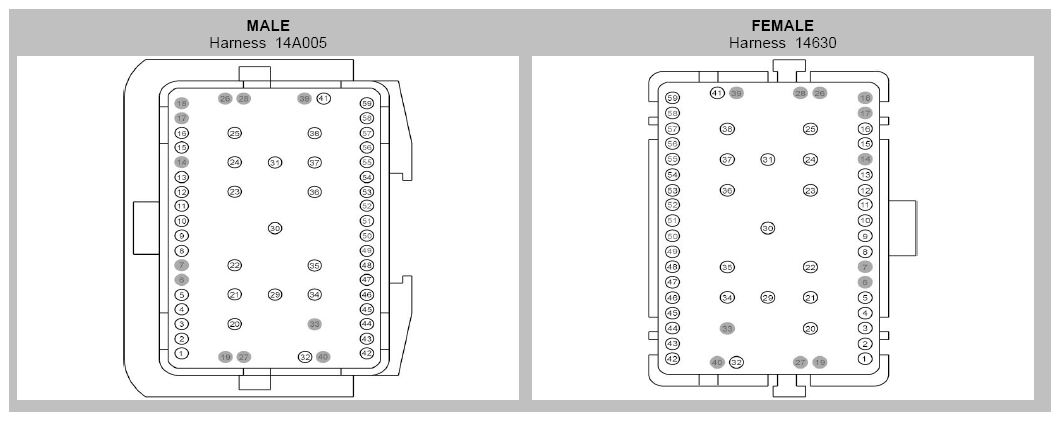

Inline Connector End View (C3139)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CLF07 (GY-OG) | 18 | 14A005 |
| 1 | CLF07 (GY-OG) | 20 | 14630 |
| 2 | CPM01 (YE-GN) | 22 | |
| 3 | CPM28 (BU-BN) | 18 | without memory |
| 3 | CPM31 (YE-GY) | 22 | with memory |
| 4 | CPM31 (YE-GY) | 18 | 14A005 - without memory |
| 4 | CPM31 (YE-GY) | 22 | 14630 - without memory |
| 4 | CPM33 (WH-VT) | 22 | with memory |
| 5 | CPM34 (WH-BN) | 18 | 14A005 - without memory |
| 5 | CPM34 (WH-BN) | 22 | 14630 |
| 5 | CPM34 (WH-BN) | 22 | 14A005 - with memory |
| 6 | * | * | |
| 7 | * | * | |
| 8 | RPK39 (VT) | 26 | 14A005 |
| 8 | RPK39 (VT-OG) | 22 | 14630 |
| 9 | VPK02 (VT) | 26 | 14A005 |
| 9 | VPK02 (VT-WH) | 22 | 14630 |
| 10 | RPK02 (GY) | 26 | 14A005 |
| 10 | RPK02 (GY-YE) | 22 | 14630 |
| 11 | CPM02 (BU) | 22 | |
| 12 | VPK40 (WH) | 26 | 14A005 |
| 12 | VPK40 (WH-OG) | 22 | 14630 |
| 13 | CPL31 (WH) | 18 | |
| 14 | * | * | |
| 15 | VR218 (YE-OG) | 18 | 14630 |
| 15 | VR218 (YE-OG) | 20 | 14A005 |
| 16 | RR132 (BU-WH) | 18 | 14630 |
| 16 | RR132 (BU-WH) | 20 | 14A005 |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | CAP06 (GY-OG) | 20 | police |
| 20 | VME11 (VT-OG) | 18 | Sony |
| 21 | CAP14 (GY-BN) | 20 | police |
| 21 | RME11 (YE-OG) | 18 | Sony |
| 22 | CLN25 (VT) | 22 | |
| 23 | CRD17 (GY) | 18 | |
| 24 | CPL11 (GY-BN) | 16 | 14A005 |
| 24 | CPL11 (GY-BN) | 18 | 14630 |
| 25 | CPL52 (VT-GY) | 16 | 14A005 |
| 25 | CPL52 (VT-GY) | 18 | 14630 |
| 26 | * | * | |
| 27 | * | * | |
| 28 | * | * | |
| 29 | SBP03 (BU-RD) | 12 | |
| 30 | CBP01 (BU) | 10 | 14A005 |
| 30 | CBP01 (BU) | 12 | 14630 |
| 31 | GD348 (BK-YE) | 10 | 14A005 |
| 31 | GD348 (BK-YE) | 12 | 14630 |
| 32 | CRB02 (BU-BN) | 22 | |
| 33 | * | * | 14A005 |
| 33 | CPW62 (BN-VT) | 22 | 14630 |
| 34 | CBP32 (GN-VT) | 18 | |
| 35 | CPW13 (BN-YE) | 22 | |
| 36 | CPW12 (GN-OG) | 22 | |
| 37 | VME10 (WH-VT) | 18 | |
| 38 | RME10 (WH-OG) | 18 | |
| 39 | * | * | |
| 40 | * | * | |
| 41 | VLN50 (YE-BU) | 22 | |
| 42 | VLN49 (YE-GN) | 22 | |
| 43 | VLN48 (YE-OG) | 22 | |
| 44 | LPM30 (GY-VT) | 22 | |
| 45 | RPM30 (YE) | 22 | |
| 46 | CPW47 (YE-GN) | 22 | 14630 |
| 46 | CPW74 (YE-GN) | 18 | 14A005 |
| 47 | VPM37 (BU-OG) | 22 | |
| 48 | VPM38 (BN-GN) | 22 | |
| 49 | * | * | |
| 50 | * | * | |
| 51 | * | * | |
| 52 | * | * | |
| 53 | CPK19 (BU-GN) | 22 | |
| 54 | CPK23 (YE-VT) | 22 | |
| 55 | * | * | |
| 56 | * | * | |
| 57 | * | * | |
| 58 | * | * | |
| 59 | CAP12 (VT-OG) | 18 | police |
